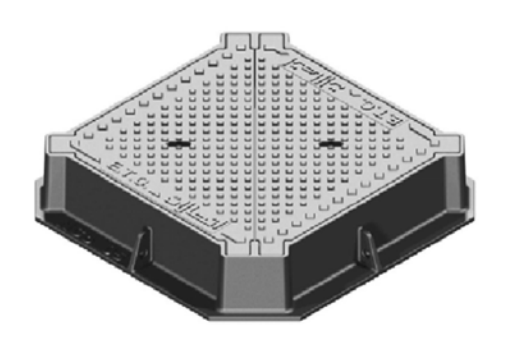

| 1.1 Carriage Way 1 | |
|---|---|
| Material | Ductile Iron |
| Shape | Two Triangular Part Covers |
| Class | D400 |
| Type | Non-Rocking |
| Opening Dimension | 600x600 mm |

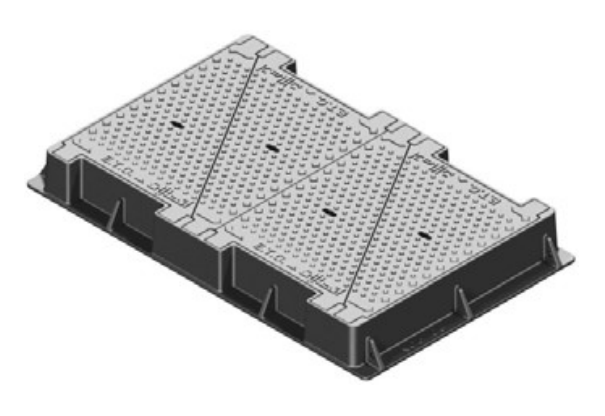

| 1.2 Carriage Way 2 | |
|---|---|
| Material | Ductile Iron |
| Shape | Four Triangular Part Covers |
| Class | D400 |
| Type | Non-Rocking |
| Opening Dimension | 1224x700 mm |

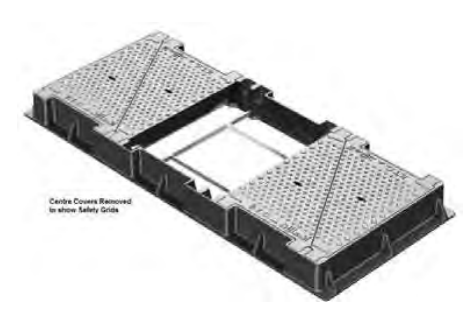

| 1.3 Carriage Way 3 | |
|---|---|
| Material | Ductile Iron |
| Shape | Six Triangular Part Covers |
| Class | D400 |
| Type | Non-Rocking |
| Opening Dimension | 1834x700 mm |

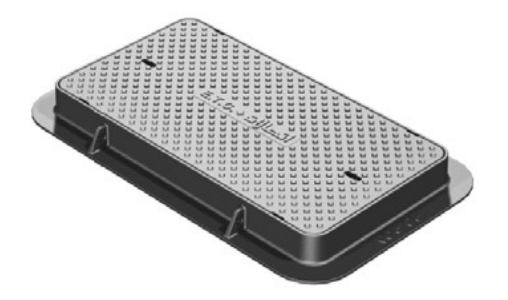

| 1.4 Carriage Way 4 | |
|---|---|
| Material | Ductile Iron |
| Shape | SolidTop |
| Class | B125 |
| Type | Non-Rocking |
| Opening Dimension | 900x450 mm |
